IHFカスタムスパイラルクラウンホイールピニオンヘリカル精密ベベルギア
今すぐお問い合わせ
高精度スパイラルホブ加工ダイカストギア鋼製金属駆動モーターピニオンホイール伝動ギア
Productfeatures:
高精度スパイラルホブダイカストギアは、現代の動力伝達システムの厳しい要求を満たすように設計されています。モーター駆動用途向けに設計されたこれらのギアは、幅広い産業環境において、効率的なトルク伝達、高い回転精度、および長期耐久性を保証します。
技術的な利点
高い寸法精度と厳しい公差
優れた耐摩耗性と耐腐食性
連続運転時でも安定した性能を発揮します。
メンテナンスとダウンタイムの削減
高速・高負荷条件下における互換性

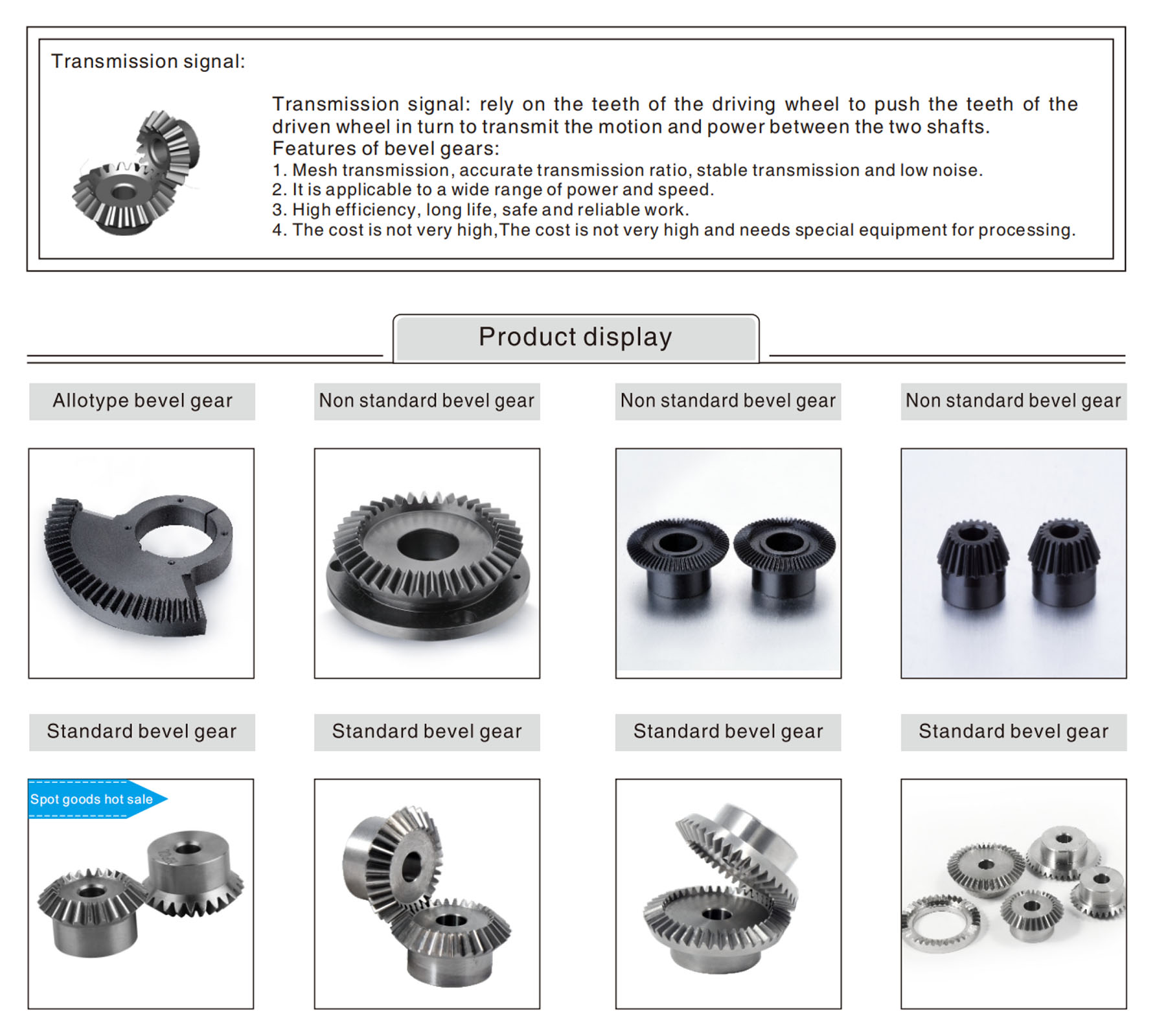

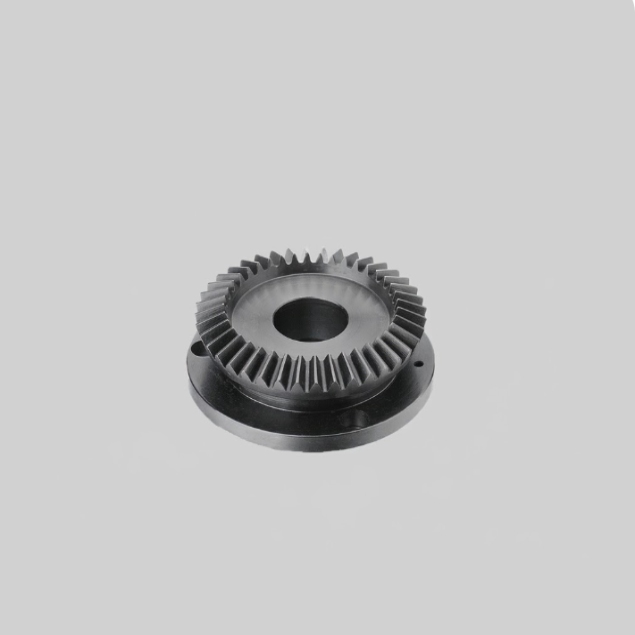

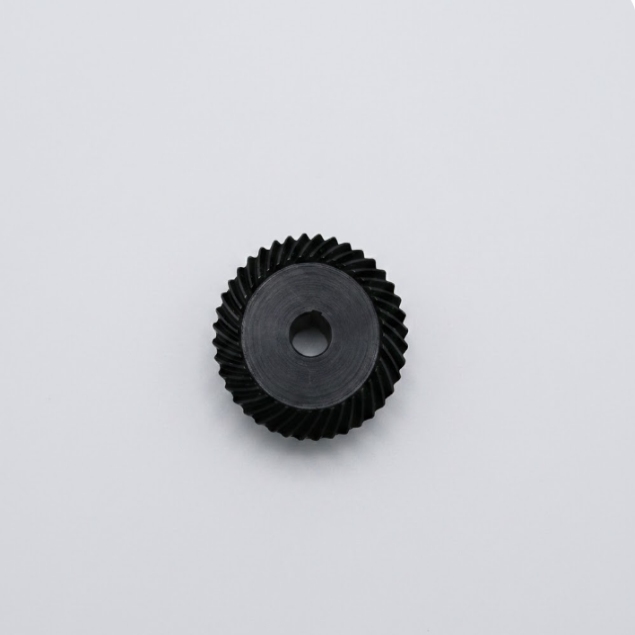

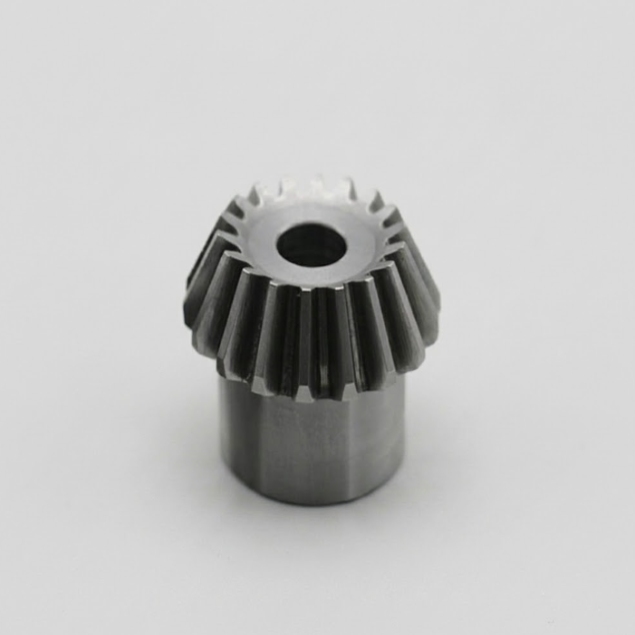

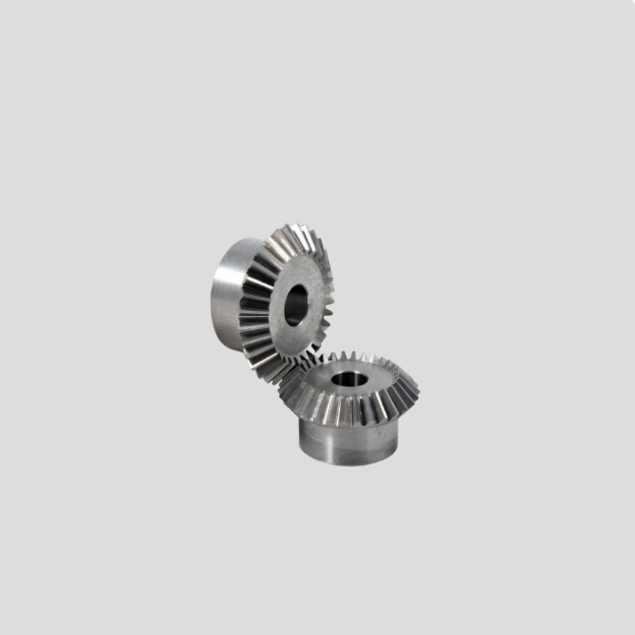

ベベルギア:
| Product Name | bevel gear |
| Material | Steel |
| shape | Bevel |
| warranty | 1.5 year |
| core components | PLC, Bearing, Motor, Pressure Vessel, Gear |
| Trademark | iHF |
| place of origin | Guangdong, China |
| pressure angle | 20 |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Bore | Small hole , OEM hole |
| Color | Natural / Black/ as demands |
| Presicion grade | DIN7 DIN6 |
| Gross weight per batch | 2.500 kg |
製品説明:
| Product name | Bevel Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Material preparation, normalizing, rough turning, quenching and tempering, semi fine turning outer circle, rough turning spiral surface, fine turning (fine grinding) inner hole end face, keyway, semi fine turning spiral surface, pliers (rest incomplete teeth), semi fine grinding outer circle, semi fine grinding spiral surface, grinding center hole, fine grinding outer circle, fine grinding spiral surface, finished product inspection |
| Applications | Electric machinery, metallurgical machinery, environmental protection machinery, electronic and electrical appliances, road construction machinery, chemical machinery, food machinery, light industrial machinery, mining machinery, transportation machinery, construction machinery, building materials machinery, cement machinery, rubber machinery, water conservancy machinery and petroleum machinery |
| Advantages | 1. Produce strictly in accordance with ANSI or DIN standard dimension 2. Material: SCM 415 steel 3. Bore: Finished bore 4.Precision grade: DIN 5 to DIN 7 5. Surface treatment: Carburizing and Quenching 6. Module: From 1 to 4 7. Tooth: From Z15 to Z70 8.Meshing transmission, accurate transmission ratio, stable transmission and low noise. 9.It is applicable to a wide range of power and speed 10.High efficiency,long service life, safe and reliable operation 11.Low cost,need to professional equipment process |
応用
The High-Precision Spiral Hobbing Die-Cast Gear is a high-precision transmission gear manufactured using advanced spiral hobbing and die-casting technologies, ensuring exceptional performance in terms of both strength and wear resistance. Typically utilized in electric motor gear transmission systems, this gear effectively enhances power transmission efficiency, reduces noise levels, and extends service life.
