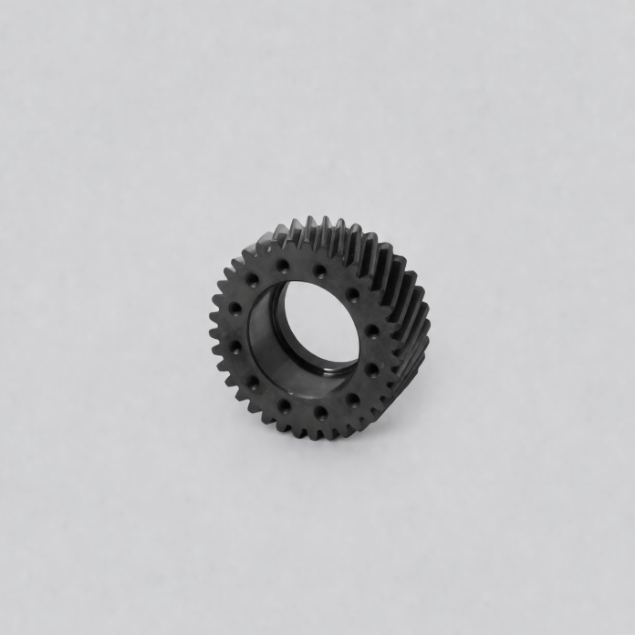

木工機械用プロ仕様ヘリカル歯小型ギア
Productfeatures:
iHF Group製のプロ仕様ヘリカル歯木工用小型ギアは、滑らかな動作、高い精度、安定したトルク伝達が求められる現代の木工機械向けに特別に設計された精密な伝達部品です。高度な歯車切削技術を用いて設計されたこれらの小型ヘリカルギアは、高速木工環境において振動や騒音を最小限に抑えながら、効率的な動力伝達を実現します。
高強度合金鋼または耐摩耗鋼材から製造されたこれらのギアは、変動する負荷条件下での連続運転に耐えるように設計されています。最適化された熱処理プロセスにより、硬度と耐疲労性が向上し、過酷な産業作業環境においても長寿命を実現します。
主な利点は以下のとおりです。
高精度ならせん歯形によりスムーズな伝達を実現
高速運転時の騒音と振動を低減
最適化された歯面接触による高い耐荷重能力
耐摩耗性に優れた構造で長寿命を実現
CNCおよび自動木工機械に適しています
コンパクトなシステムにおける安定した効率的なトルク伝達
精密ギア:
| Product Name | helical gear |
| Material | Stainless Steel |
| shape | Spur |
| warranty | 1.5 year |
| machinery test report | Provided |
| Trademark | iHF |
| place of origin | Guangdong, China |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN7 DIN6 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Gross weight per batch | 2.500 kg |
製品説明:
| Product name | Precision Grinding Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping |
| Applications | Printing Equipment,Laser Equipment,Automated Assembly Line,Woodworking Industry,Packaging Equipment,Logistics Storage Machinery,Robot,Machine Tool Equipment |
| Advantages | 1. Produce strictly in accordance with ANSI or DIN standard dimension 2. Material: SCM 415 steel 3. Bore: Finished bore 4.Precision grade: DIN 5 to DIN 7 5. Surface treatment: Carburizing and Quenching 6. Module: From 1 to 4 7. Tooth: From Z15 to Z70 8.Meshing transmission, accurate transmission ratio, stable transmission and low noise. 9.It is applicable to a wide range of power and speed 10.High efficiency,long service life, safe and reliable operation 11.Low cost,need to professional equipment process |
応用
Specialized small gears for woodworking are widely utilized in woodworking equipment, effectively enhancing both mechanical transmission efficiency and stability. These gears feature a precision-engineered design suitable for a diverse range of woodworking machinery—including milling machines, saws, and sanders—ensuring consistent, high-level performance even under conditions of heavy loads and high operating speeds.
